Level Switches

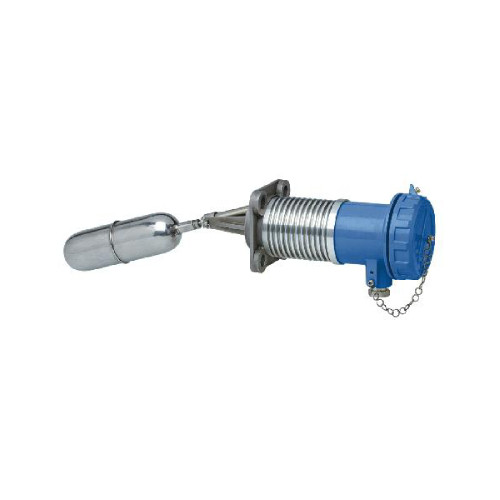

Mounting :SIDE / TOP

Type :General Purpose / Sanitary

Specific Gravity :0.75

Operating Temp :-10°C …. 100°C

Operating Pressure :12 Bar

Switch Points :1No / 2 Nos / 3Nos / 4 Nos

Process Connection :1" BSP / NPT / Standard Flanges

Wetted Parts :SS316

Ingress Protection :Weather Proof / Flame Proof / Ex-Proof

Switch Type :1SPST & 1SPDT

Switch Rating :5A / 230 VAC -Reed Switch

Insertion Length :150 mm …. 3000 mm

Enclosure Protection :Die Cast Aluminium / SS304, also with surface coating - Epoxy Painting

Wetted Parts Protection :Non Magnetic SS316 , Surface coating - PVDF / PTFE

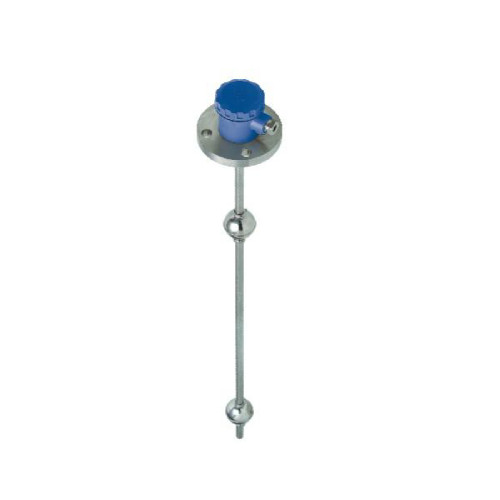

Mounting :TOP

Type :General Purpose / Sanitary

Specific Gravity :0.75

Operating Temp :-10°C …. 100°C

Operating Pressure :12 Bar

Switch Points :1No / 2 Nos / 3Nos / 4 Nos

Process Connection :1" BSP / NPT / Standard Flanges

Wetted Parts :SS316

Ingress Protection :Weather Proof / Flame Proof / Ex-Proof

Switch Type :1SPST & 1SPDT

Switch Rating :0.5A / 230 VAC -Reed Switch

Insertion Length :150 mm …. 3000 mm

Enclosure Protection :Die Cast Aluminium / SS304, also with surface coating Epoxy Painting

Wetted Parts Protection :Non Magnetic SS316, Surface coating - PVDF / PTFE

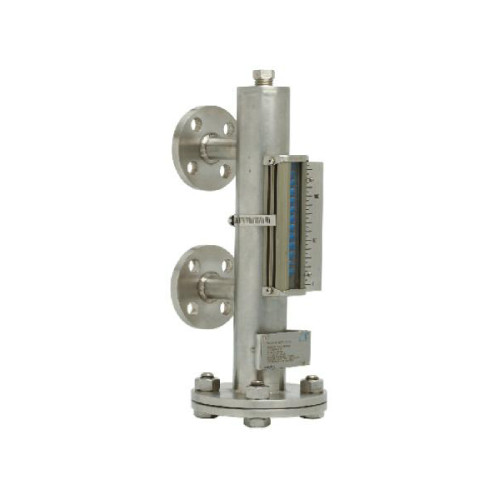

Mounting :REAR / SIDE / TOP SIDE

Specific Gravity :0.75

Operating Temp :-20 ... 120°c / -20 …300°c

Operating Pressure :10bar / 25 bar / 50 Bar / 80 Bar /100 Bar

Process Connection :1/2" ….. 1" NPT / Standard Flanges / Weld in

Indicator :Rolling Flappers - Blue & White / Red & White

Wetted Parts Protection :SS304 / SS316 / SS316L / with NACE

Distance Center to Center :200 mm …. 6000 mm

Scale :Aluminium / SS304 /SS316

Least Count :As per requirement

Options :Switches -1SPDT , Switch Points -1 / 2 / 3 / 4 Nos / Transmitter /Valve

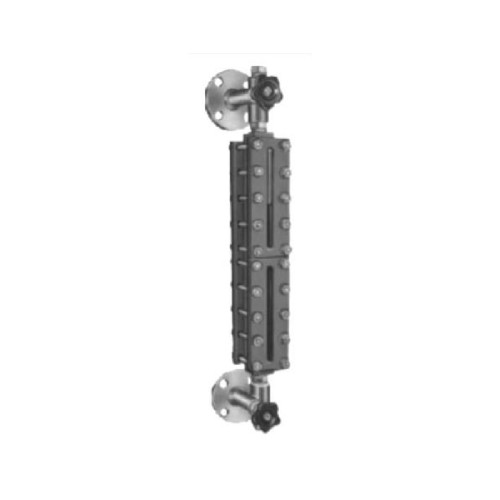

Mounting :LEFT SIDE / RIGHT SIDE / REAR SIDE / TOP SIDE

Operating Temp :-20 ... 120°C / UPTO 240°C / UPTO 400°C

Operating Pressure :20bar / 35 bar / 65 Bar / 80 Bar /100Bar / 200 bar

Process Connection :1/2" ….. 1" NPT / Standard Flanges / Weld in

Indicator :Gauge Glass -Klinger / Borosilicate

Wetted Parts :SS304 / SS316 / CS105

Distance Center to Center :250 mm …. 6000 mm

Scale :Aluminium / SS304 /SS316

Least Count :As per requirement

Options :Needle / ball Valves / FLANGES with Vent or Drain Port, Auto shut of valve

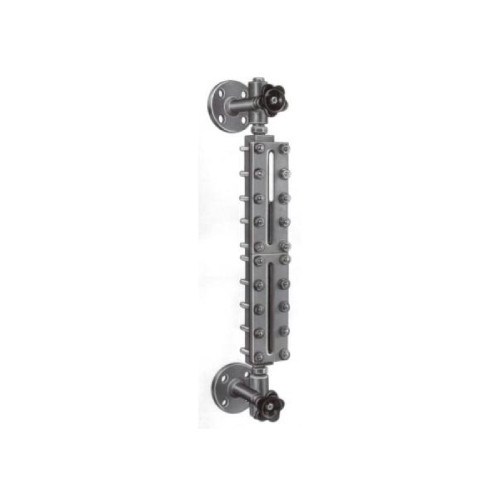

Mounting :LEFT SIDE / RIGHT SIDE / REAR SIDE / TOP SIDE

Operating Temp :-20 ... 120°C / 240°C / 300°C

Operating Pressure :20bar / 35 bar / 65 Bar / 80 Bar / 100 Bar / 200 Bar

Process Connection :1/2" ….. 1" NPT / Standard Flanges / Weld in

Indicator :Gauge Glass - Klinger / Borosilicate

Wetted Parts :SS304 / SS316 / CS105

Distance Center to Center :250 mm …. 6000 mm

Scale :Aluminium / SS304 /SS316

Least Count :As per requirement

Options :Anti frost protection, Illuminator with diffuser, Needle / ball Valves / FLANGES with Vent or Drain Port /Auto shut of valve

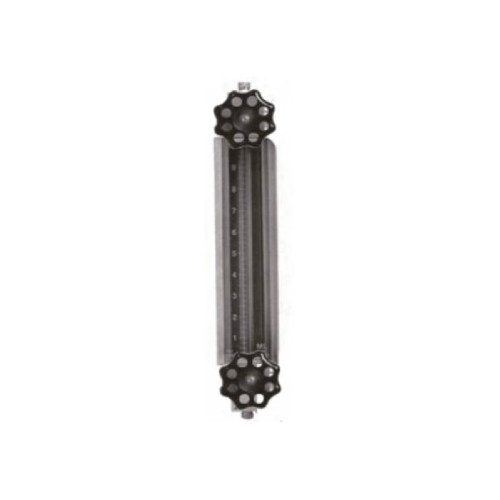

Mounting :REAR SIDE / LEFT SIDE / RIGHT SIDE / TOP SIDE

Operating Temp :-10 ... 100°C

Operating Pressure :Upto 10 Bar

Process Connection :1/2" ….. 1" BSP/ NPT / Standard Flanges

Indicator :Borosilicate Glass Tube / Plexi Glass

Wetted Parts :SS304 / SS316 / CS105

Distance Center to Center :150 mm …. 2000 mm

Scale :Aluminium / SS304 /SS316

Least Count :As per requirement

Options :Drain / Vent with ball Valves

Mounting assemblies (2 x pulley systems) :Cadmium plated steel pulley with PTFE bush and SS shaft housed In weatherproof enclosure

Operating Temp :-10 ... 80°C

Operating Pressure :Upto 5 Bar

Process Connection :Standard Flanges

Least Count :5 mm

Float Material & Size :AlS1316 SS / ?200 mm for up to 7.5 Meters / AISI316 SS /?350 mm for up to 20 Meters

Measuring Ranges :3 meter …. 20 meter

Scale :Aluminium / SS with coating

Float / Guide Wire Ropes :AISI 316 SS / AISI 304 SS (0 1.6 mm • multistard)

Options :Ancer Plate for float guide

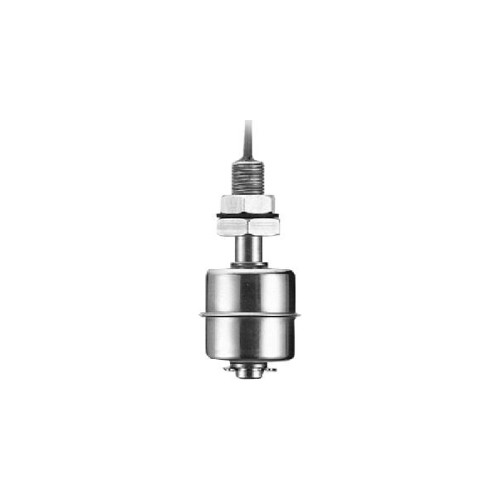

Mounting :SIDE / TOP

Type :Side Mounted / Top Mounted

Specific Gravity :0.8

Operating Temp :-10 …. 180°C

Operating Pressure :4 bar … 10 Ba

Process Connection :1/4" ….. 1" BSP / NPT

Switch Type & Rating :1SPDT / 2 SPDT, 0.5A /230VAC-Reed switch

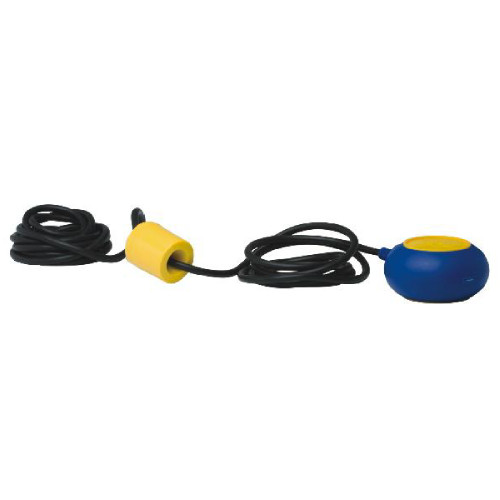

Mounting :TOP

Material of Float :POLYPROLINE

Process Conn. Material :SS316 / PP / CS105 / PVC

Specific Gravity :0.8

Operating Temp :-10 …. 60°C

Operating Pressure :Max 4 Bar

Enclosure :Die Cast Aluminium - Weather proof / Flame Proof

Process Connection :Standard Flanges

Ingress Protection :IP68

Switch Type & Rating :1SPDT, 5A / 250 VAC -Micro Switch

Cable Material & Set Points :PVC / 5 Points

Cable Length :300 mm ………upto 25 meter
