Thermocouples
Thermocouples
Thermocouples

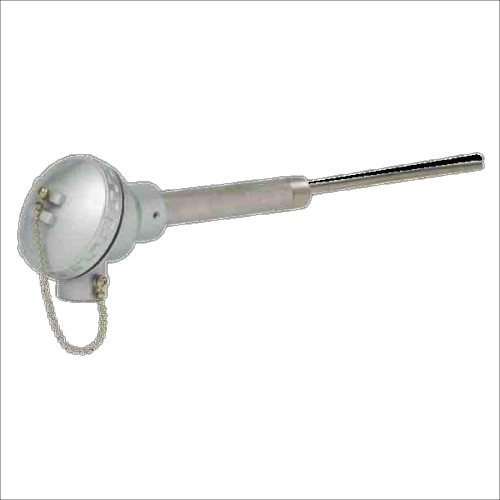

Element :Type - K / J / T / N / E
Accuracy :Standard to IEC 584 & ANSI MC96.1
No. of Sensors :Simplex / Duplex
Hot Junction :Ungrounded / Grounded
Sheath Material :SS316 /SS316L / SS310 / INCONEL 600 /SS446
Sheath Diameter :3 / 5 / 6 / 8 mm
Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather IP65/66/68 / Flame Proof / Explosion Proof / Atex
Terminal Head Material :Die cast Aluminium / SS304 /SS316
Cable Entry :3/4" ET/NPT, 1/2" NPT , M20
Head Extension Type :Nipple assembly in ASTM A105 (plated ), SS304 / SS316
Head Extension Length :50 mm to 250 mm
Immersion :50 mm upto 1000 mm
Process Connection :1/2" / 3/4" - BSP / NPT, M20
Others :With Transmitter, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland, CE Certification.

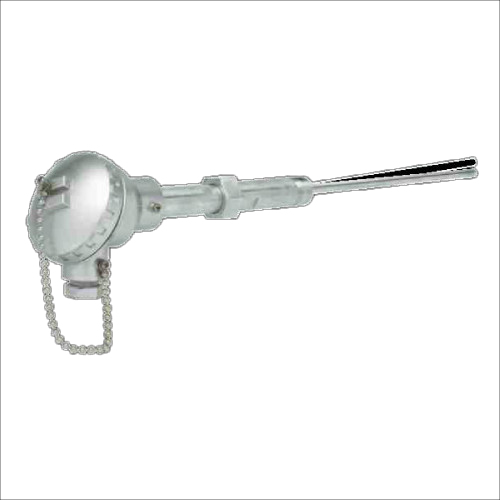

Element :Type-K / J / T / N /E
Accuracy :Standard to IEC 584 & ANSI MC96.1
No. of Sensors :Simplex / Duplex
Hot Junction :Ungrounded / Grounded
Sheath Material :SS316 /SS316L / SS310 / INCONEL 600 /SS446
Sheath Diameter :3 / 5 / 6 / 8 mm
Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof / Atex
Terminal Head Material :Die cast Aluminium / SS304 /SS316
Cable Entry :3/4" ET/NPT, 1/2" NPT , M20
Head Extension Type :Nipple Union Nipple Assembly in ASTM A105 (plated), SS304 / SS316
Head Extension Length :100 mm to 250 mm
Immersion :50 mm upto 1000 mm
Process Connection :1/2" / 3/4" - BSP / NPT, M20
Others :With Transmitter,Terminal Block PCD -33 /46 mm, Single / Double Compression Gland, CE Certification.

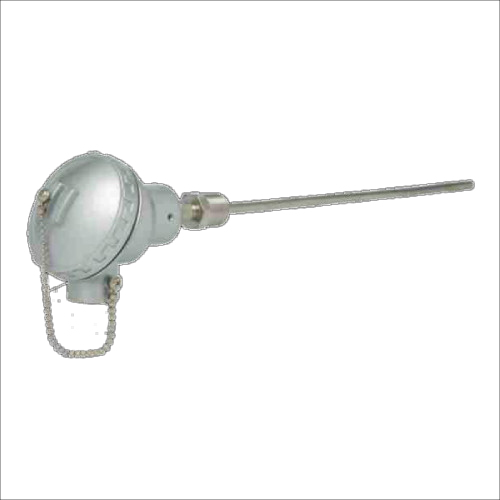

Element :Type-K / J / T / N /E
Accuracy :Standard to IEC 584 & ANSI MC96.1
No. of Sensors :Simplex / Duplex
Hot Junction :Ungrounded / Grounded
Sheath Material :SS316 /SS316L / SS310 / INCONEL 600/SS446
Sheath Diameter :3 / 5 / 6 / 8 mm
Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof / Atex
Terminal Head Material :Die cast ALUMINIUM / SS304 /SS316
Cable Entry :3/4" ET/NPT, 1/2" NPT , M20
Head Extension :Fixed Connection
Immersion :50 mm upto 1000 mm
Process Connection :1/2" / 3/4" - BSP / NPT, M20
Others :With Transmitter, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland, CE Certification.

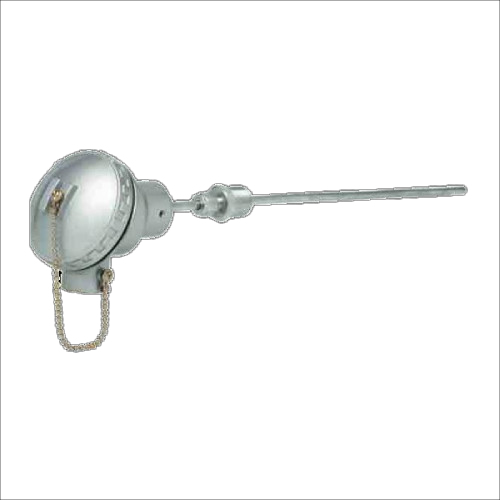

Element :Type-K / J / T / N /E
Accuracy :Standard to IEC 584 & ANSI MC96.1
No. of Sensors :Simplex / Duplex
Hot Junction :Ungrounded / Grounded
Sheath Material :SS316 /SS316L / SS310 / INCONEL 600/SS446
Sheath Diameter :3 / 5 / 6 / 8 mm
Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof / Atex
Terminal Head Material :Die cast Aluminium / SS304 /SS316
Cable Entry :3/4" ET/NPT, 1/2" NPT , M20
Head Extension :Adjustable Connection
Immersion :50 mm upto 1000 mm
Process Connection :1/2" / 3/4" - BSP / NPT, M20
Others :With Transmitter, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland, CE Certification.

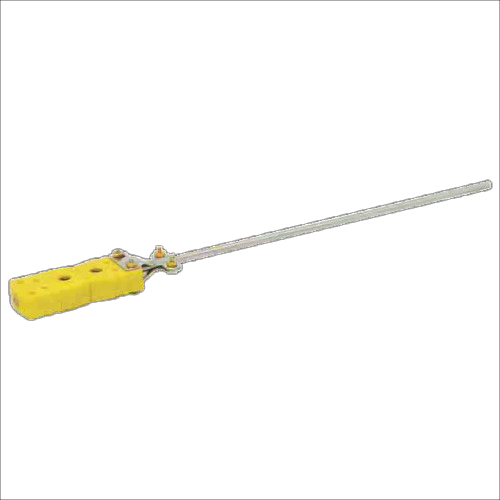

Element :Type-K / J / T / N /E
Accuracy :Standard to IEC 584 & ANSI MC96.1
No. of Sensors :Simplex
Hot Junction :Ungrounded / Grounded
Sheath Material :SS316 /SS316L / SS310 / INCONEL 600
Sheath Diameter :3 / 5 / 6 / 8 mm
Cold End Terminal :Standard Plug & Jack Connector
Lead Wire Type :PTFE / PTFE / SS Braided
Immersion Length :50 mm upto 10000 mm

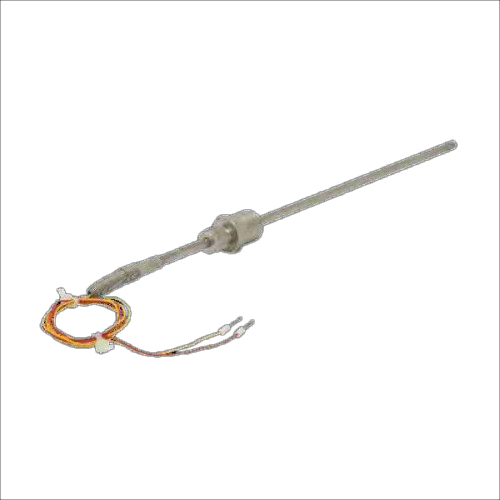

Element :Type-K / J / T / N /E
Accuracy :Standard to IEC 584 & ANSI MC96.1
No. of Sensors :Simplex / Duplex
Hot Junction :Ungrounded / Grounded
Sheath Material :SS316 /SS316L / SS310 / INCONEL 600
Sheath Diameter :3 / 5 / 6 / 8 mm Lead
Wire Length :1000 to 25000 mm Lead
Wire Type :PTFE / PTFE / SS Braided
Immersion Length :50 mm upto 10000 mm

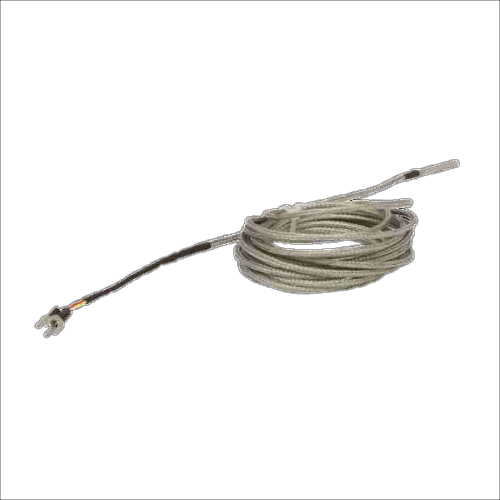

Element :Type-K / J / T / N /E
Accuracy :Standard to IEC 584 & ANSI MC96.1
No. of Sensors :Simplex / Duplex
Hot Junction :Ungrounded
Sheath Material :SS316 /SS304
Sheath Diameter :3 / 5 / 6 / 8 mm
Lead Wire Length :1000 to 25000 mm
Lead Wire Type :PTFE / PTFE / SS Braided /FG/FG
Element Length :10 mm upto 50 mm

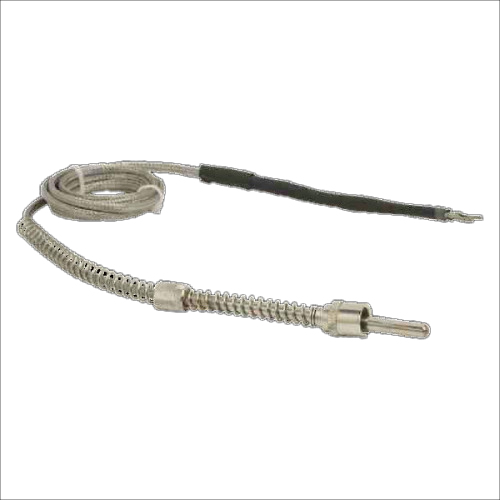

Element :Type-K / J / T / N /E
Accuracy :Standard to IEC 584 & ANSI MC96.1
No. of Sensors :Simplex / Duplex
Hot Junction :Ungrounded
Sheath Material :SS316 /SS304
Sheath Diameter :3 / 4.5 / 6.35 / 8 mm
Lead Wire Length :1000 to 25000 mm
Lead Wire Type :PTFE / PTFE / SS Braided /FG/FG
Immersion Length :10 mm upto 200 mm
Process Connection :Bayonet ID 12 / 14 mm
Mounting Type :Straight / 90 Angular / Button Type

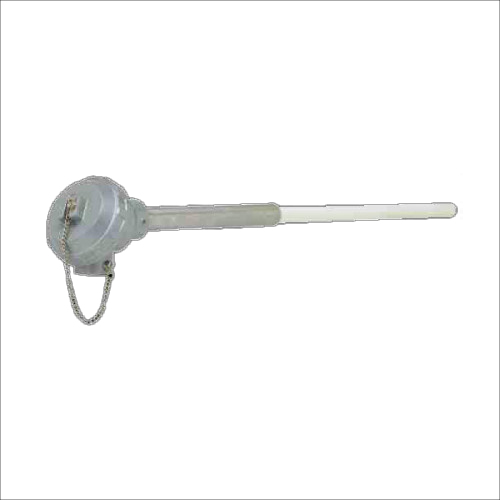

Element :Type-K / J / K / N / R / S / B Mineral insulated / Element with ceramic insulator
Accuracy :Standard to IEC 584 & ANSI MC96.1
No. of Sensors :Simplex / Duplex
Hot Junction :Ungrounded / Grounded
Sheath Material :INCONEL 600 / CERAMIC
Insulator Diameter :3 / 5 / 6 / 8 /10 / 12 mm
Wire Diameter :24 /25 / 26 / 27 swg
Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof
Terminal Head Material :Die cast Aluminium / SS304 /SS316
Cable Entry :3/4" ET/NPT, 1/2" NPT , M20
Process Connection Type :Adjustable / Fixed Flange
Immersion :100 mm upto 1000 mm
Process Connection :Standard Flanges
Head Extension Type :Head with female threading
Support Tube Material :SS316/ SS316L /SS310 / INCONEL / SS446
Inner Protection Tube Material :KER - 610, Pythagoras / KER - 710, Recrystallised Alumina
Inner Protection Tube Size :6X1, 8X1.5 / 10X2, 12X2 mm
Outer Protection Tube Material :KER - 610, Pythagoras / KER - 710, Recrystallised Alumina,Kanthai AF , Kanthai APM, lnconel600
Outer Protection Tube Size :6X1, 8X1.5/ 10X2, 12X2,15X2.5,20X2.5, 24X3,
Others :With Transmitter, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland
Element :Type-K / J / K / N / R / S / B Mineral insulated / Element with ceramic insulator
Accuracy :Standard to IEC 584 & ANSI MC96.1
No. of Sensors :Simplex / Duplex
Hot Junction :Ungrounded / Grounded
Sheath Material :INCONEL 600 / CERAMIC
Insulator Diameter :3 / 5 / 6 / 8 /10 / 12 mm
Wire Diameter :24 /25 / 26 / 27 swg
Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 /Flame Proof / Explosion Proof
Terminal Head Material :Die cast Aluminium / SS304 /SS316
Cable Entry :3/4" ET/NPT, 1/2" NPT , M20
Process Connection Type :Adjustable / Fixed Connection
Immersion :100 mm upto 1000 mm
Process Connection :1/2" / 3/4"/ 1" / 1.5" / 2" - BSP / NPT, M20
Head Extension Type :Head with female threading
Support Tube Material :SS316/ SS316L /SS310 / INCONEL / SS446
Inner Protection Tube Material :KER - 610, Pythagoras / KER - 710, Recrystallised Alumina
Inner Protection Tube Size :6X1, 8X1.5 / 10X2, 12X2 mm
Outer Protection Tube Material :KER - 610, Pythagoras / KER - 710, Recrystallised Alumina,Kanthai AF , Kanthai APM, lnconel600
Outer Protection Tube Size :6X1, 8X1.5/ 10X2, 12X2,15X2.5,20X2.5, 24X3,
Others :With Transmitter, Terminal Block PCD -33 /46 mm, Single /Double Compression Gland

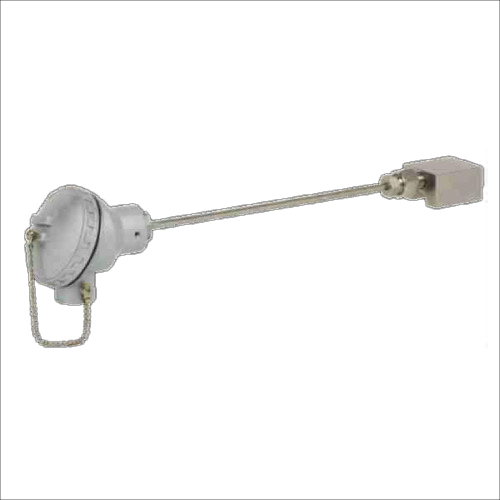

Element :Type-K / N
Accuracy :Standard to IEC 584 & ANSI MC96.1
No. of Sensors :Simplex / Duplex
Hot Junction :Ungrounded / Grounded
Sheath Material :SS316 /SS316L / SS310 / INCONEL 600
Sheath Diameter :3 / 5 / 6 / 8 mm
Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof
Terminal Head Material :Die cast Aluminium / SS304 /SS316
Cable Entry :3/4" ET/NPT, 1/2" NPT , M20
Head Extension :Adjustable Connection
Immersion :50 mm upto 1000 mm
Process Connection :1/2" / 3/4" - BSP / NPT, M20
Mounting :Local / No Bracket / with Bracket / 2" pipe mounting Bracket / Surface Mounting
Weld Pad :Rectangle / Integral Collar
Others :With Transmitter, Terminal Block PCD -33 /46 mm, Single /Double Compression Gland

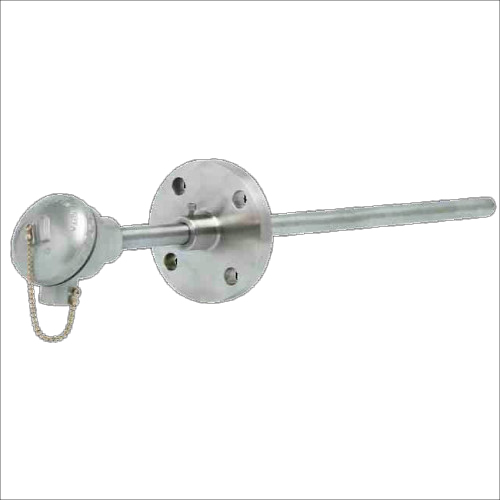

Element :Type-K / J / N / R / S / B Mineral insulated / Element with ceramic insulator
Accuracy :Standard to ISA &ANSI MC96.1
No. of Sensors :Simplex / Duplex
Hot Junction :Ungrounded / Grounded
Sheath Material :INCONEL 600 / SS316
Insulator Diameter :3 / 5 / 6 / 8 /10 / 12 mm
Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof
Terminal Head Material :Die cast Aluminium / SS304 /SS316
Cable Entry :3/4" ET/NPT, 1/2" NPT , M20,
Immersion :50 mm upto 1500 mm
Process Connection :Standard Flanges - Adjustable / Fixed Type
Head Extension Type :Head with female threading
Protection Tube :SS316/ SS346 / SS310 / SS316L / lnconel600
Protection Tube Size :10X1.5 /12X1.5 / PIPE 3/8" / PIPE 1/2" / PIPE 3/4"-SCH. 40 / SCH 80
Others :With Transmitter, Terminal Block PCD -33 /46 mm,Single / Double Compression Gland
