Thermowells

Material Construction :SS304 / SS310 / SS316 / SS446 / INCONEL / MONEL/HASTELLOY-C

Instrument Connection :3/8" / 1/2" / 3/4" / 1" -BSP /NPT (F)

Process Connection :1/2"/3/4"/1"/ 1.5" / 2" -BSP / NPT (M)

Bore Size : 7 / 9 / 10 / 12 / 16 mm in Seamless Pipe / Tube , 7x10, 7x12, 9x14,10x12,12x14, 12x16 mm , Pipe 1/8" , 1/4" 1/2" , 1" Sch.-40,80,160 in Fabricated Thermowell

Head Type :Hexagonal, Round

Extension Length :45mm / 50mm / special requirement

Insertion Length :100 to 2000 mm

Material Construction :SS304 / SS310/ SS316 /SS446/INCONEL /MONEL/HASTELLOY-C

Instrument Connection :3/8" / 1/2" / 3/4" / 1" -BSP /NPT (F)

Process Connection :1/2" / 3/4" / 1" / 1.5" / 2" -BSP / NPT (M)

Bore Size :6.6 / 7 / 8.5 / 9.6 / 11 / 13 mm in Bar stock Thermowell

Head Type :Hexagonal, Round

Extension Length :45mm / 50mm / special requirement

Insertion Length :Round Type Upto 1000 mm / Hex Type: Upto 300 mm

Other Options :Wake Frequency Calculation, Shank surface coating / Lining / Sleeve

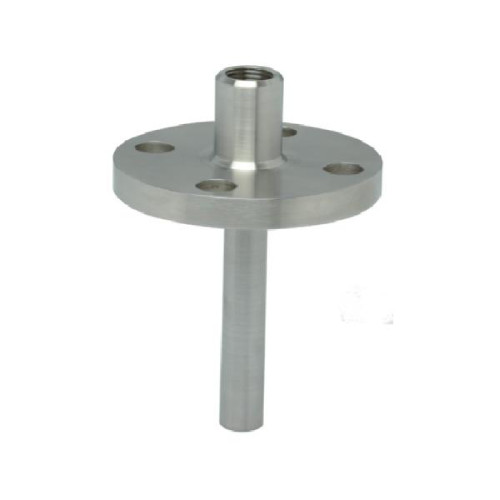

Material Construction :SS304 / SS310 / SS316 / SS446 / INCONEL / MONEL/HASTELLOY-C

Instrument Connection :3/8" / 1/2" / 3/4" / 1" -BSP /NPT (F)

Process Connection :Standard Flanges

Bore Size :7 / 9 / 10 / 12 / 16 mm in Seamless Pipe / Tube , 7x10, 7x12, 9x14,10x12,12x14, 12x16 mm , Pipe 1/8" , 1/4" 1/2" , 1" Sch.- 40, 80, 160 in Fabricated Thermowell

Head Type :Round

Extension Length :45mm / 50mm / special requirement

Insertion Length :Round Type Upto 2000 mm

Other Options :Shank surface coating / Lining / Sleeve

Material Construction :SS304 / SS310 / SS316 / SS446 / INCONEL / MONEL/HASTELLOY-C

Instrument Connection :3/8" / 1/2" / 3/4" / 1" -BSP /NPT (F)

Process Connection :Standard Flanges

Bore Size :6.6 / 7 / 8.5 / 9.6 / 11 / 13 mm in Bar stock Thermowell

Head Type :Round

Extension Length :45mm / 50mm / special requirement

Insertion Length :Round Type Upto 1000 mm

Other Options :Wake Frequency Calculation, Shank surface coating / Lining / Sleeve

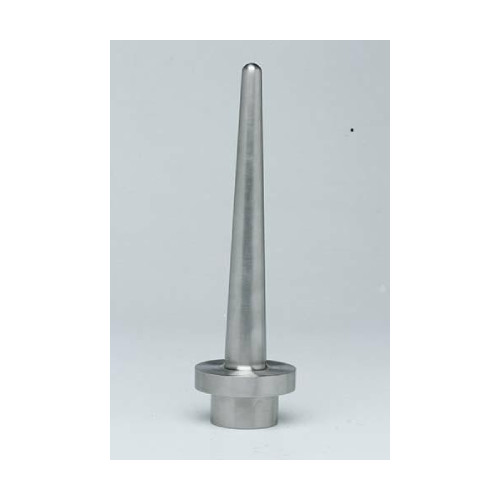

Material Construction :SS304 / SS310 / SS316 / SS446 / INCONEL / MONEL/HASTELLOY-C

Instrument Connection :3/8" / 1/2" / 3/4" / 1" -BSP /NPT (F)

Process Connection :Suitable to Standard Flanges

Bore Size :6.6 / 7 / 8.5 / 9.6 / 11 / 13 mm in Bar stock Thermowell

Head Type :Round

Extension Length :45mm / 50mm / special requirement

Insertion Length :Round Type Upto 1000 mm

Other Options :Wake Frequency Calculation, Shank surface coating / Lining / Sleeve
