RTDS
RTDS
RTDS

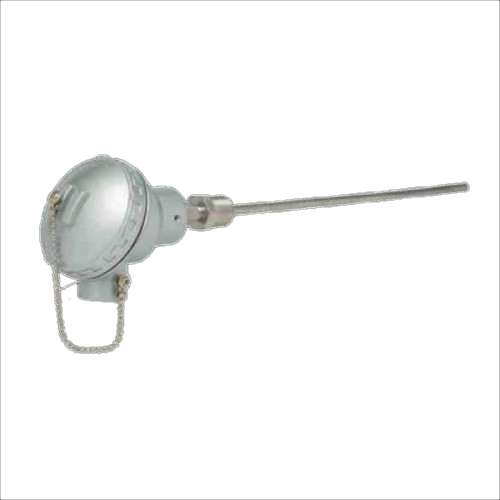

Element :PT-100 /500 / 1000, Class A / B
Range :-200 …. 400 / 600°C
Wire Combination :Simplex / Duplex , 2 Wire/3 Wire/4Wire
Accuracy :IEC-751 I DIN 43760
Sheath Material :SS316 /SS316L
Sheath Diameter :3 / 5 / 6 / 8 /10 mm
Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof /Atex.
Terminal Head Material :Die cast Aluminium / SS304 /SS316
Cable Entry :3/4" ET/NPT, 1/2" NPT , M20
Head Extension :Nipple Extension assembly in ASTM A105 ( plated ) /SS304 /SS316
Head Extension Length :50 mm upto 250 mm
Immersion Length :50 mm upto 10000 mm
Process Connection :1/2" / 3/4" - BSP / NPT, M20 (M)
Others :With Transmitter 4…20 Ma output,Terminal Block PCD -33 /46 mm, Single / Double Compression Gland, CE Certification

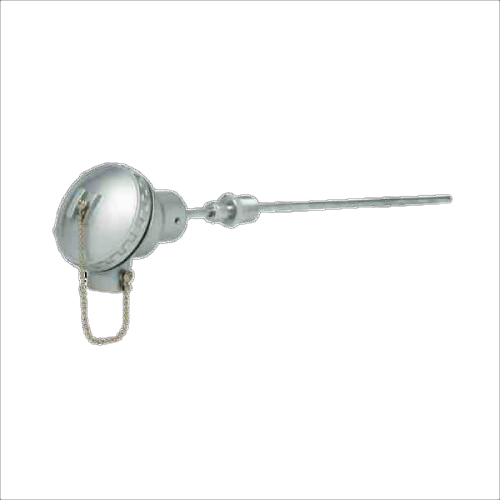

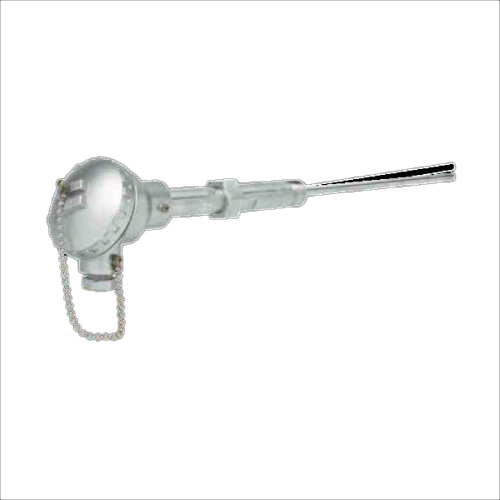

Element :PT-100 /500 / 1000, Class A / B
Range :-200 …. 400 / 600°C
Wire Combination :Simplex / Duplex , 2 Wire/3 Wire/4Wire
Accuracy :IEC-751 I DIN 43760
Sheath Material :SS316 /SS316L
Sheath Diameter :3 / 5 / 6 / 8 /10 mm
Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof /Atex.
Terminal Head Material :Die cast Aluminium / SS304 /SS316
Cable Entry :3/4" ET/NPT, 1/2" NPT, M20
Head Extension :Nipple Union Nipple Extention assembly in ASTM A105 ( plated )/SS304 /SS316
Head Extension Length(NUN) :100 mm upto 250 mm
Immersion Length :50 mm upto 10000 mm
Process Connection :1/2" / 3/4" - BSP / NPT, M20 (M)
Others :With Transmitter 4…20 Ma output, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland, CE Certification

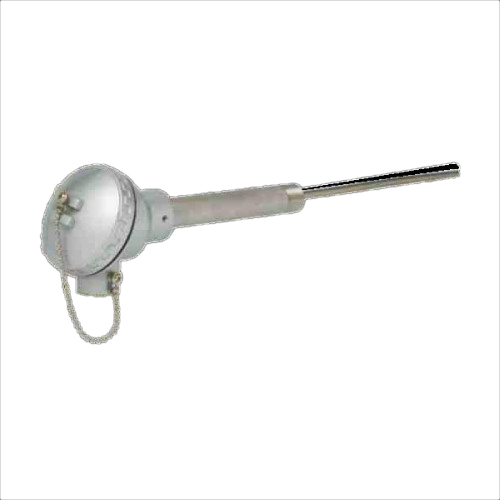

Element :PT-100 /500 / 1000 , Class A / B
Range :-200 …. 400 / 600°C
Wire Combination :Simplex / Duplex, 2 Wire/3 Wire/4Wire
Accuracy :IEC-751 / DIN 43760
Sheath Material :SS316 /SS316L
Sheath Diameter :3 / 5 / 6 / 8 /10 mm
Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof /Atex.
Terminal Head Material :Die cast Aluminium / SS304 /SS316
Cable Entry :3/4" ET/NPT, 1/2" NPT, M20
Process Connection Type :Fixed Connection
Immersion Length :50 mm upto 10000 mm
Process Connection :1/2" / 3/4" - BSP / NPT, M20 (M)
Others :With Transmitter 4…20 Ma output, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland, CE Certification

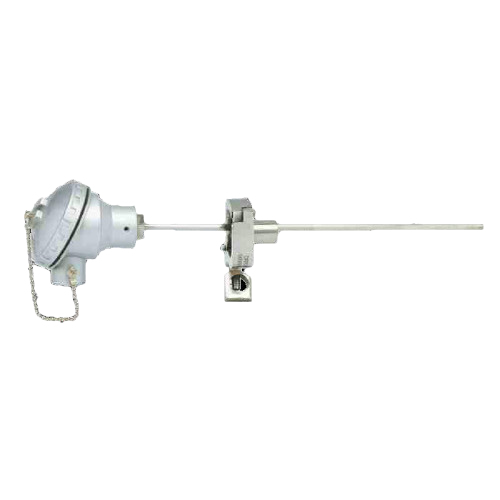

Element :PT-100 / 500 / 1000 , Class A / B
Range :-200 …. 400 / 600°C
Wire Combination :Simplex / Duplex , 2 Wire /3 Wire /4 Wire
Accuracy :IEC-751 / DIN 43760
Sheath Material :SS316 /SS316L
Sheath Diameter :3 / 5 / 6 / 8 /10 mm
Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof
Terminal Head Material :Die cast Aluminium / SS304 /SS316
Cable Entry :3/4" ET/NPT, 1/2" NPT, M20
Head Extension :Adjustable Connection
Immersion Length :50 mm upto 10000 mm
Process Connection :1/2" / 3/4" - BSP / NPT, M20
Others :With Transmitter 4…20 Ma output, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland

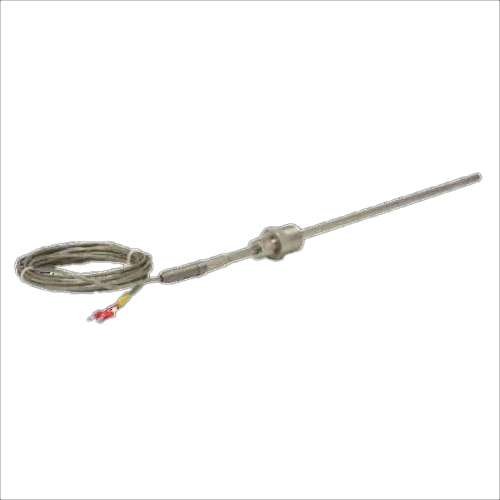

Element :PT-100 / 500 / 1000 , Class A / B
Range :-200 …. 400 / 600°C
Wire Combination :Simplex / Duplex , 2 Wire/3 Wire/4Wire
Accuracy :IEC-751 / DIN 43760
Sheath Material :SS316 / SS316L
Sheath Diameter :3 / 5 / 6 / 6.35 / 8 mm
Head Extension :Adjustable Connection
Immersion Length :50 mm upto 10000 mm
Process Connection :1/2" / 3/4" - BSP / NPT, M20
Lead Wire Length :1000 to 25000 mm
Lead Wire Type :PTFE / PTFE / SS Braided , CE Certification

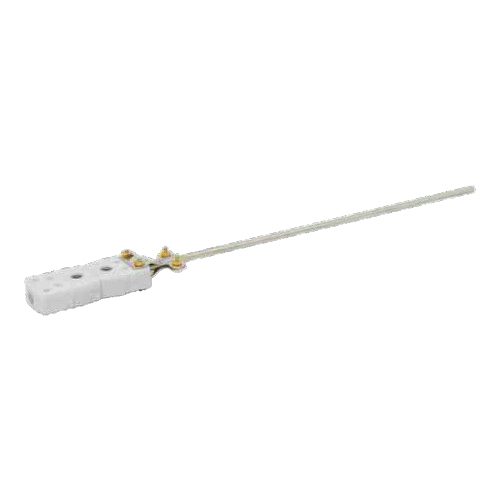

Element :PT-100 / 500 / 1000 , Cla ss A / B
Range :-200 …. 400 / 600°C
Wire Combination :Simplex, 3 wire
Accuracy :IEC-751 / DIN 43760
Sheath Material :SS316 / SS304
Sheath Diameter :3 / 5 / 6 / 6.35 / 8 mm
Lead Wire Connector :Plug and Jack Connection
Immersion Length :50 mm upto 10000 mm
Process Connection :1/2" / 3/4" - BSP / NPT, M20
Lead Wire Length :1000 to 25000 mm
Lead Wire Type :PTFE / PTFE / SS Braided

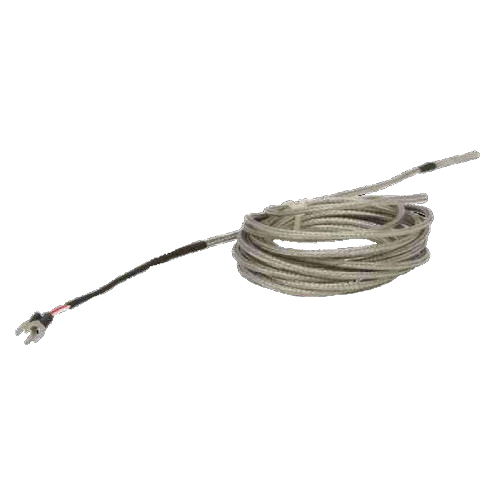

Element :PT-100 / 500 / 1000 , Class A / B
Range :-200 …. 400 / 600°C
Wire Combination :Simplex / Duplex , 2 Wire/3 Wire/4Wire
Accuracy :IEC-751 / DIN 43760
Sheath Material :SS316 / SS304
Sheath Diameter :3 / 5 / 6 / 6.35 / 8 mm
Element Length :10 mm upto 50 mm
Lead Wire Type :PTFE / PTFE / SS Braided /FG/FG
Lead Wire Length :1000 to 25000 mm , CE Certification

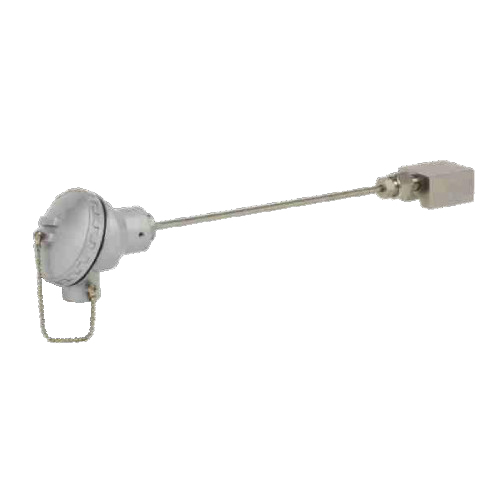

Element :PT-100 / 500 / 1000 , Class A / B
Range :-200 …. 400 / 600°C
Wire Combination :Simplex / Duplex , 2 Wire/3 Wire/4Wire
Accuracy :IEC-751 / DIN 43760
Sheath Material :SS316 /SS316L / SS310
Sheath Diameter :3 / 5 / 6 / 8 mm
Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof
Terminal Head Material :Die cast Alumi / SS304 /SS316
Cable Entry :3/4" ET/NPT, 1/2" NPT, M20
Head Extension :Adjustable Connection
Immersion Length :50 mm upto 1000 mm
Process Connection :1/2" / 3/4" - BSP / NPT, M20
Mounting :Local / No Bracket / with Bracket / 2" pipe mounting, Bracket / Surface Mounting
Weld Pad :Rectangle / Integral Collar
Others :With Transmitter, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland
Element :PT-100 / 500 / 1000 , Class A / B
Range :-200 …. 400 / 600°C
Wire Combination :Simplex / Duplex , 2 Wire / 3 Wire / 4Wire
Accuracy :IEC-751 / DIN 43760
Sheath Material :SS316 /SS316L / SS310
Sheath Diameter :3 / 5 / 6 / 8 mm
Terminal Head Type :Threaded Cover / Hinged / 2 screwed / Weather -IP65/66/68 / Flame Proof / Explosion Proof
Terminal Head Material :Die cast Alumi / SS304 /SS316
Cable Entry :3/4" ET/NPT, 1/2" NPT, M20
Head Extension :Adjustable Connection
Immersion Length :50 mm upto 1000 mm
Process Connection :TRI CLAMP -1" /1.5"/ 2" /2.5''
Others :With Transmitter, Terminal Block PCD -33 /46 mm, Single / Double Compression Gland
