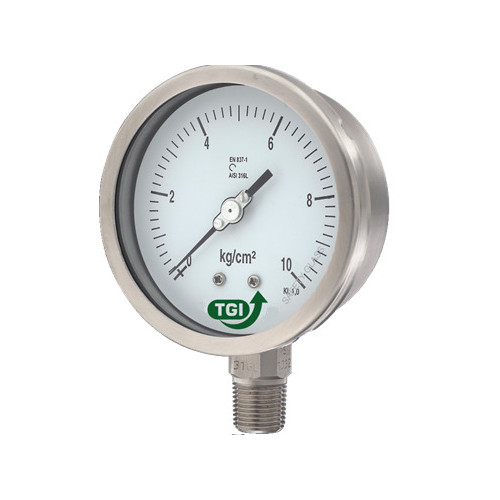

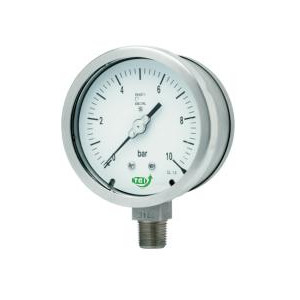

Pressure Gauges

Dial Size :DN100 / DN150 / DN250

Range :-1 to 0 , 0-1 to 0-1600 Bar

Accuracy :±1% / CL 1

Mounting :Bottom / Lower Back / Center Back

Process Connection :1/2"-BSP / NPT Standard

Ingress Protection :IP68

Execution :Fillable / Dry / Filled

Bourdon Tube & Socket :SS316L / MONEL -TIG WELDED

Case & Bezel :SS304 /SS316

Optional :External Zero Adjustment

Dial Size :DN50 / DN63 / DN80 / DN100

Range :-1 to 0 , 0-1 to 0-1000 Bar

Accuracy :±1.6% / CL 1.6

Mounting :Bottom / Center Back

Process Connection :1/4" BSP / NPT Standard

Ingress Protection :IP65

Execution :Fillable / Dry / Filled

Bourdon Tube & Socket :SS316- TIG WELDED / 2 PC TYPE

Case & Bezel :SS304

Dial Size :DN100 / DN150

Range :-1 to 0 , 0-1 to 0-1600 Bar

Accuracy : ±1% / CL 1

Mounting :Bottom / Lower Back

Process Connection :1/2"-BSP / NPT Standard

Ingress Protection :IP68

Execution :Fillable / Dry / Filled

Bourdon Tube & Socket :SS316L / MONEL -TIG WELDING

Welded Case & Bezel :SS304 / SS316

Optional :External Zero Adjustment

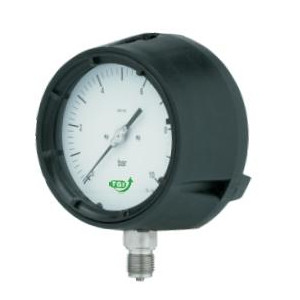

Dial Size :DN115

Range :-1 to 0 , 0-1 to 0-1600 Bar

Accur. & Repeatability :±0.5% / CL 0.5

Mounting :Bottom / Lower Back

Process Connection :1/2"-BSP / NPT

Ingress Protection :IP68

Execution :Dry

Bourdon Tube & Socket :SS316L / MONEL -TIG

Welded Case & Bezel :PHENOLIC / PBPT

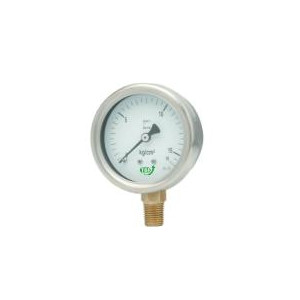

Dial Size :DN50 / DN63 / DN80 / DN100

Range :-1 to 0 , 0-1 to 0-40 Bar

Accuracy :±2.5% / CL 2.5

Mounting :Bottom / Center Back

Process Connection :1/8" , 1/4" BSP / NPT

Ingress Protection :IP65

Execution :Fillable / Dry / Filled

Bourdon Tube & Socket :Copper Alloy

Case & Bezel :SS304

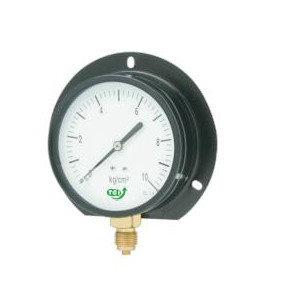

Dial Size :N40 / DN50 / DN63 / DN100 / DN150 / DN250

Range :-1 to 0 , 0-1 to 0-400 Bar

Accuracy :±2.5% / CL 2.5

Mounting :Bottom / Center Back

Process Connection :1/8'' / 1/4" / 3/8" / 1/2" BSP / NPT (M)

Ingress Protection :IP54

Execution :Dry

Bourdon Tube & Socket :Copper Alloy

Case & Bezel :Steel black powder coated

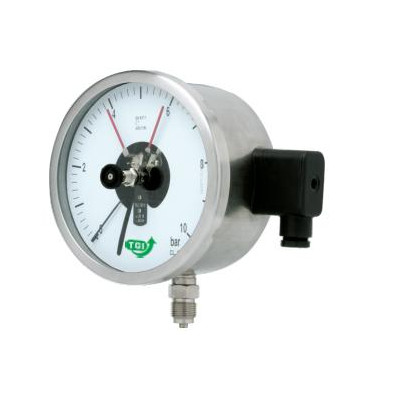

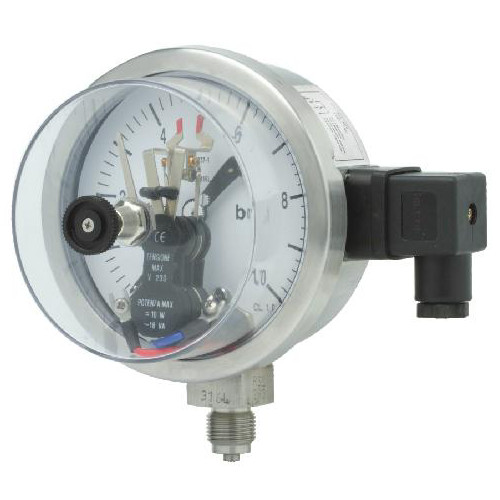

Dial Size :DN100 / DN150

Range :-1 to 0 , 0-1 to 0-1600 Bar

Accuracy : ± 1% / CL 1 , Reference Standard : EN837-1

Mounting :Bottom / Lower Back with Doom type window

Process Connection :1/4" / 3/8" / 1/2"-BSP / NPT and special Threads

Ingress Protection :IP68

Execution :Dry / Fillable / Filled

Electric Contact :Magnetic / Inductive Contacts, NO, NC, NO NC, NC NO, NO NO, NC NC

Bourdon Tube & Socket :SS316L / Monel -TIG WELDING

Case & Bezel :SS304 / 316

Dial Size :DN100 / DN150

Range :-1 to 0 , 0-1 to 0-1600 Bar

Accuracy :±1% / CL 1.0 - Reference Standard : EN837-1

Mounting :Bottom / Lower Back with standard safety glass window

Process Connection :1/4" / 3/8" / 1/2"-BSP / NPT and special Threads

Ingress Protection :IP65

Execution :Dry / Fillable

Electric Contact :Magnetic / Inductive Contacts, NO / NC, NO NO, NC NC

Bourdon Tube & Socket :SS316L -TIG WELDING

Welded Case & Bezel :SS304 / 316

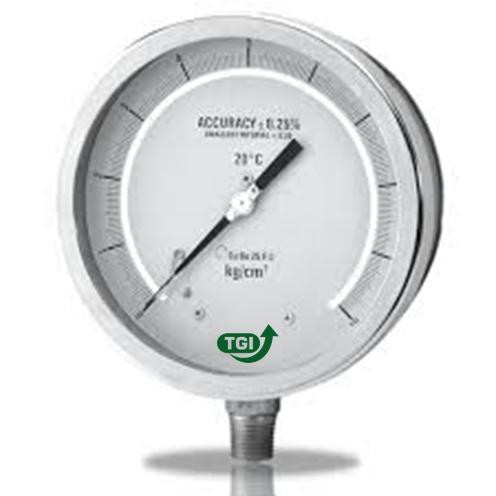

Dial Size :DN150 / DN250 / DN300

Range :-1 to 0 , 0-1 to 0-1600 Bar, Reference Standard : EN837-1

Accuracy :±0.25% / CL 0.25

Movement :Jewel Bearing

Mounting :Bottom / Lower Back

Process Connection :1/2"-BSP / NPT

Ingress Protection :IP68

Execution :Dry

Bourdon Tube & Socket :Berrlium Copper & SS316L / Copper alloy

Case & Bezel :SS304 / Steel Case Powder coated

Note :Dial with anti parallax mirror band, Knife Edge Micro Adju. Pointer

Dial Size :DN63 / DN100 / DN150 / DN250 , Ref. Standard : EN837-3

Range :6 mbar ….. 600mbar & Compound pressure ranges

Accuracy :±1.6% / CL1.6 for SS Internal

Mounting :Bottom / Lower Back / Center Back

Process Connection :1/4" / 3/8" / 1/2"-BSP / NPT and special Threads

Ingress Protection :IP65

Execution :Dry / Fillable for Ranges above 100mbar

Bourdon Tube & Socket :SS316L

Case & Bezel :SS304 / SS316 / STEEL

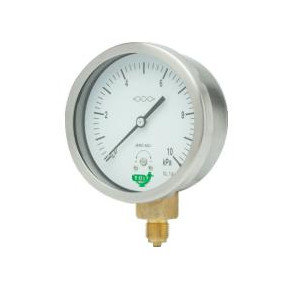

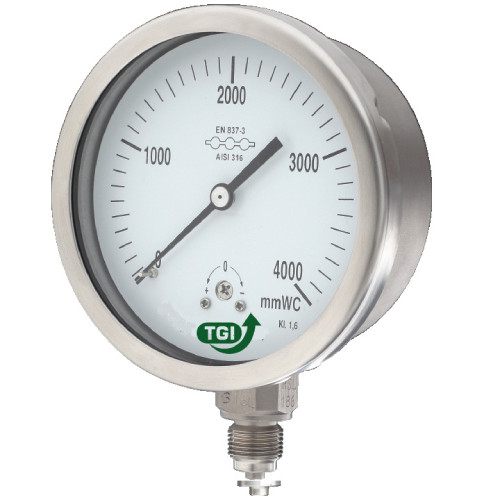

Dial Size :DN63 / DN100 / DN150 / DN250 , Ref .Standard : EN837-3

Range :6 mbar ….. 600mbar & Compound pressure ranges

Accuracy :±1.6% / CL1.6 for Copper Alloy Internal

Mounting :Bottom / Lower Back / Center Back

Process Connection :1/4" / 3/8" / 1/2"-BSP / NPT and special Threads

Ingress Protection :IP65

Execution :Dry / Fillable for Ranges above 100mbar

Bourdon Tube & Socket :Copper Alloy

Case & Bezel :SS304 / SS316 / STEEL

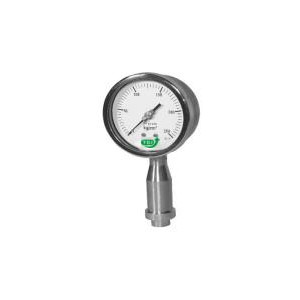

Dial Size :DN50 / DN63 / DN100 / DN150, Ref. Standard : EN837-1

Range :-1 to 0 , 0-1 to 0-40 Bar

Accuracy :±1.6% / CL 1.6

Mounting :Bottom / Center Back

Process Connection :1/2''….. 2.5" Triclamp Type

Ingress Protection :IP65

Execution :Fillable / Dry / Filled

Bourdon Tube & Socket :SS316 with SS Case and Bezel

Seal Filling Liquid :Food Grade Oil /Glycerin

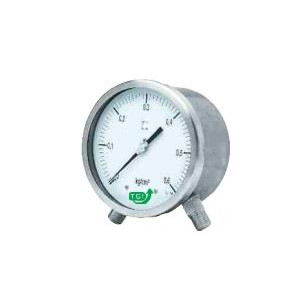

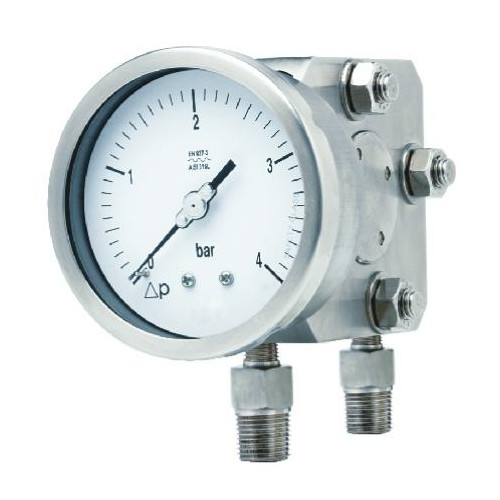

Dial Size :DN100 / DN150

Range :0-25mbar to 0-10 Bar

Accuracy :±1 % / CL 1 - Acending, Reference Standard : EN837-3, IS 3634

Mounting :Bottom / Back, Optional with External Zero Adjustment

Process Connection :1/4",/3/8",/1/2"-BSP / NPT

Ingress Protection :IP68

Execution :Filled / Fillable / Dry

Bourdon Tube & Socket :SS316L / Monel / special alloys

Case & Bezel :SS304/316

Gasket :Viton

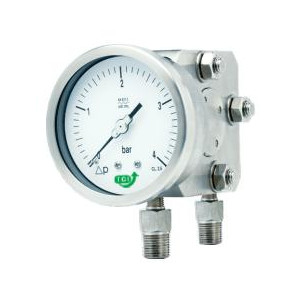

Dial Size : DN100 / DN150

Range :0-250 mbar to 10 bar

Accuracy :± 1.0 % in Acending, Reference Standard : EN837-3

Mounting :Bottom / Back

Process Connection :1/4" NPT (F)

Ingress Protection :IP65

Execution :Fillable / Dry / Dry but fillable

Bourdon Tube & Socket :SS316L / Monel / special alloys

Case & Bezel :SS304 / 316

Gasket :Viton

Dial Size :DN150

Range :0-100mbar to 0-16 Bar,

Accuracy :±1% / CL 1 Acending

Mounting :Bottom / Lower Back

Process Connection :1/2"-BSP / NPT

Ingress Protection :IP65

Execution :Fillable / Dry / Dry but fillable

Body & Bellow :SS316L, Body & Bellow TIG Welded

Case & Bezel :SS304 / 316

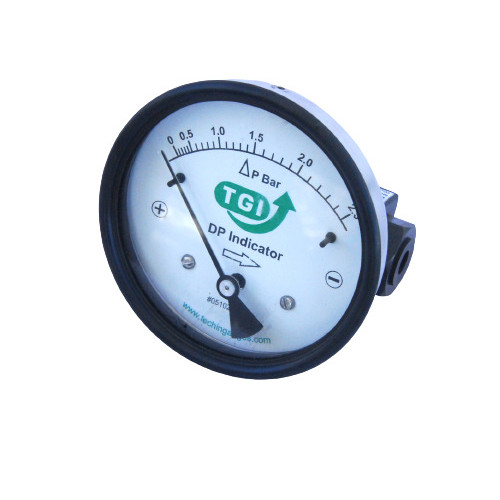

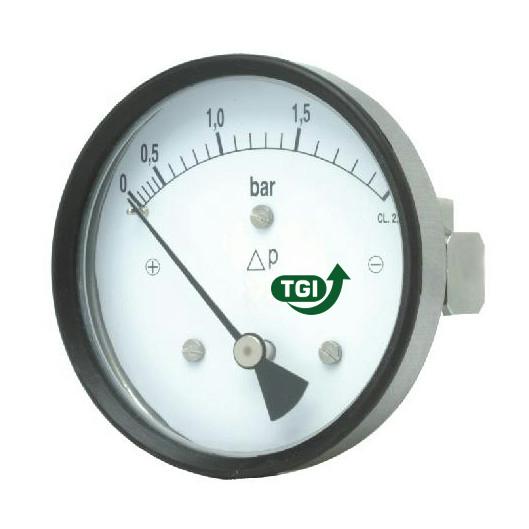

Dial Size :DN63 / DN100 / DN150

Range :0-250mbar to 0-10 Bar

Accuracy :±2% / CL 2 - Ascending

Mounting :Inline / Bottom / Back Ports , Direct / Case 3 Hole Panel

Process Connection :1/4" NPT ( F)

Ingress Protection :IP65

Execution :Fillable / Dry Wetted

Wetted Parts :Body-SS316, Spring- SS302,Magnet-Ceramic, Seal - Teflon, Case -SS304, Diphragm - Viton, Piton-SS316L

Dial Size :DN63 / DN100 / DN150

Range :0-250mbar to 0-10 Bar

Accuracy :±2% / CL 2 - Ascending

Mounting :Inline / Bottom / Back Ports

Process Connection :1/4" NPT ( F)

Ingress Protection :IP65

Execution :Fillable / Dry

Wetted Parts :Body-SS316, Spring- SS302,Magnet-Ceramic, Seal - Teflon, Diphragm - Viton, Piton-SS316L

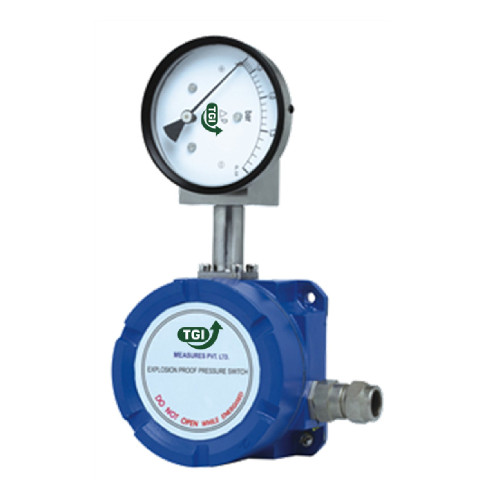

Dial Size :DN63 / DN100 / DN150

Range :0-250mbar to 0-10 Bar

Accuracy :±2% / CL 2 - Ascending

Mounting :Inline / Bottom / Back Ports , Case with integrated 3 Hole Panel

Process Connection :1/4" NPT ( F)

Ingress Protection :IP65

Execution :Fillable / Dry

Wetted Parts :Body-SS316, Spring- SS302,Magnet-Ceramic, Seal - Teflon, Diphragm -Viton, Piton-SS316L

Switching /Head :1SPDT /2DPDT, 230VAC/0.5A

Head :ATEX & FM approved Ex class I, II & Ill NEMA 4X, IP66, IP67

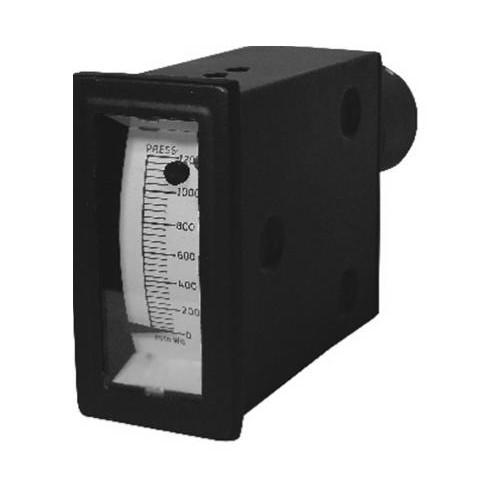

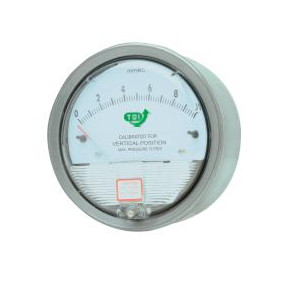

Dial Size :DN100

Range :0-5mmwc to 600 mmwc

Accuracy :±2 % / CL 2 - Acending

Mounting :Side / Back

Process Connection :1/8'' (F) BSP

Ingress Protection :IP54

Execution :Dry

Case & Bezel :Die Cast Aluminum

Sensing Element :Silicon Rubber Diaphragm

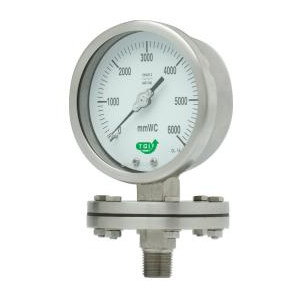

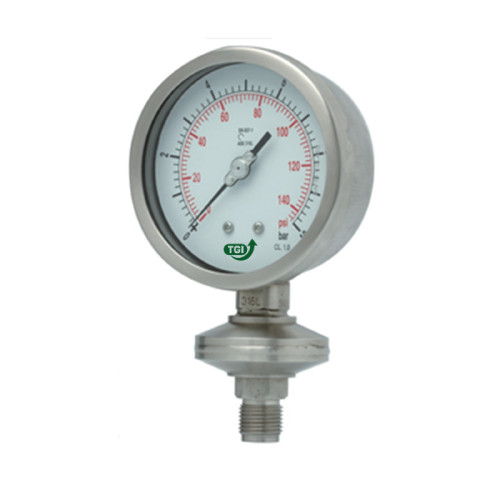

Dial Size :DN100 / DN150

Range :0-250mmwc to 0-16 bar

Accuracy :±1% / CL 1, Refer. Standard : EN837-3,

Mounting :Bottom / Center Back, also with External Zero Adjustment

Process Connection :/1/2"-BSP / NPT

Execution :Dry

Body :SS316

Diaphragm :SS316 /Monel /Teflon /Inconel

Case & Bezel :SS304/316, - Shank & Case TIG welded

Note :This Model is suitable for PTFE Lining

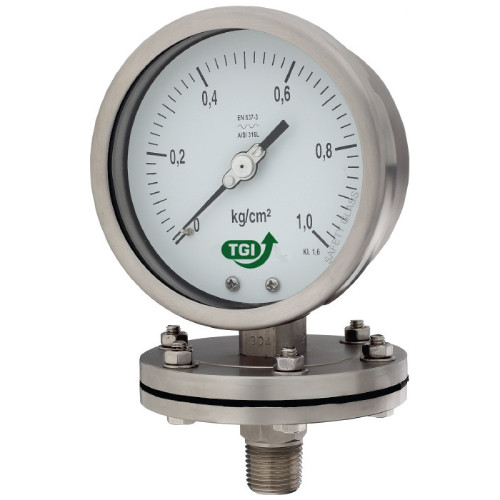

Dial Size :DN100 / DN150

Range :0-250mmwc to 0-10 bar

Accu. & Repeatability :±1% / CL 1 , Ref. Standard : EN837-3

Mounting :Bottom

Process Connection :1/2"-BSP / NPT

Ingress Protection :IP65

Execution :Dry

Body :SS316

Diaphragm :SS316 /Teflon

Case & Bezel :SS304/316, - Shank & Case TIG welded

Dial Size :DN150 X 78mm / DN 200X104 mm

Range :-6000 to +6000 mmwc

Accuracy :±2.5 % / CL 2.5

Mounting :Center Back with Bracket

Process Connection :1/4'' BSP ( M)

Ingress Protection :IP54

Execution :Dry

Bellow :SS316

Case & Bezel :Steel -Black Painted

Dial Size :DN100 / DN150

Range :0-100 to 0-1000 Bar

Accu. & Repeatability :±1.6% / CL 1.6 , Ref. Standard : EN837-1

Mounting :Bottom with standard seal / customised seal

Process Connection :Mounting Flange, Threaded Conn, Direct Connection

Ingress Protection :IP65

Execution :Fillable / Dry Diaphragm

Bourdon Tube & Socket :SS316L - Tig Welded

Case & Bezel :SS304/316 - Socket welded with Case

Dial Size :DN100

Range :0-5mmwc to 600 mmwc

Accuracy :±2 % / CL 2 - Acending

Mounting :Side / Back

Process Connection :1/4'' / 1/2'' / 3/8'' BSP (M) / (F)

Ingress Protection :IP68

Execution :Dry / Fillable / Dry but Fillable

Case & Bezel :SS304 / SS316

Sensing Element :Diaphragm, SS316 / Monel / Has-C

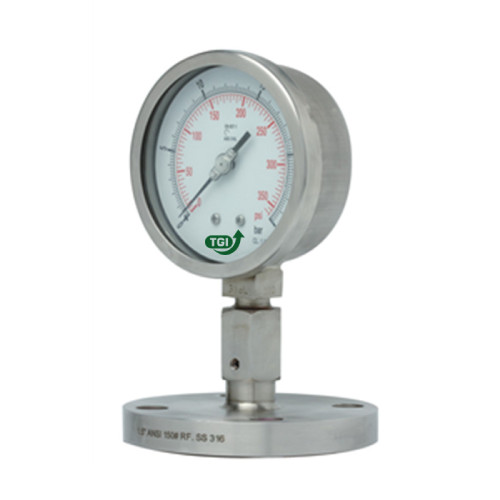

Dial Size :DN100 / DN150, Reference Standard : EN837-1,

Range :-1 to 0 , 0-1 to 0-250 Bar

Accuracy : ±1.6% / CL 1.6

Mounting :Bottom / Center Back

Instrument Connection :1/2'' BSP / NPT & SPECIAL THREADS

Process Connection :Flange size & class, MOC : SS316/SS304/Monel

Ingress Protection :IP65

Execution :Fillable / Dry

Bourdon Tube & Socket :SS316

Seal Filling Liquid :Silicon Oil

Note :Fully Welded
